HARDWARE FEATURES
Plug Type EU
Standards and Protocols HomePlug AV2, HomePlug AV, IEEE 1901, IEEE 802.3,
IEEE 802.3u, IEEE 802.3ab
Interface Gigabit Ethernet Port
Button Pair/Reset button
Power Consumption Maximum: 2.7W (220V/50Hz)
Typical: 2.3W (220V/50Hz)
Standby: 0.5W (220V/50Hz)
LED Indicator Power, Powerline, Ethernet
Dimensions ( W x D x H ) 2.0 × 1.1 × 2.6 in (52 × 28.5 × 65 mm)
Range Up to 300 meters/1000 feet over existing electrical wiring
SOFTWARE FEATURES
Modulation Technology OFDM (PLC)
Encryption Powerline Security: 128-bit AES Encryption
OTHERS
Certification CE, RoHS

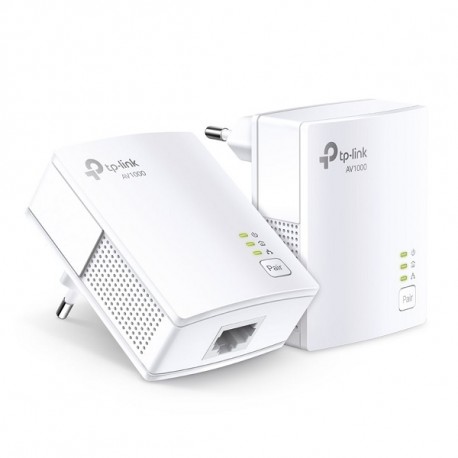

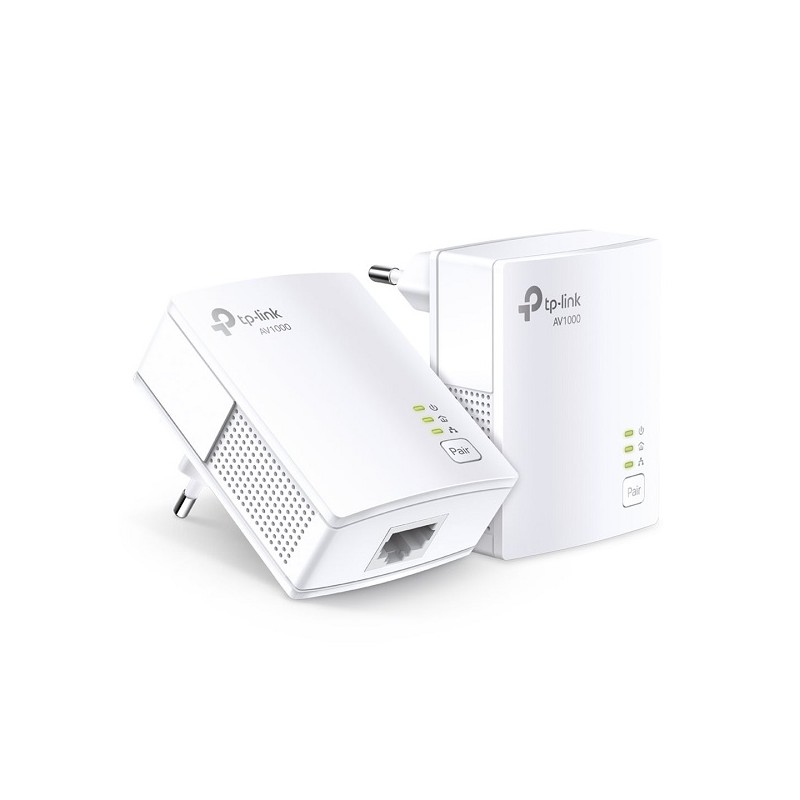

Package Contents - 2 × AV1000 Gigabit Powerline Adapter TL-PA7017
- 2 × Ethernet Cable
- 1 × Quick Installation Guide
System Requirements Windows 2000/XP/2003/Vista/7/8/8.1/10, Mac, Linux
Environment Operating Temperature: 0°C~40°C (32°F ~104°F)
Storage Temperature: -40°C~70°C (-40°F ~158°F)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
